A Reproducible Pipeline for Processing WorldClim 2.1 Historical Monthly Weather Data in Brazil

Daniel Vartanian &amp; Aline M. de Carvalho

Author

Daniel Vartanian & Aline M. de Carvalho

Published

August 18, 2025

Overview

This report provides a fully reproducible pipeline for processing WorldClim 2.1 Historical Monthly Weather Data for Brazil using the R programming language.

Data Availability

The processed data are available in the tif format via a dedicated repository on the Open Science Framework (OSF), accessible here. You can also access these files directly from R using the osfr package.

Methods

Source of Data

The data used in this report come from the following sources:

WorldClim 2.1: A downscaled version of high-resolution interpolated gridded climate datasets (Fick & Hijmans, 2017).
CRU-TS-4.09: A high-resolution gridded dataset of climate variables, developed by the Climatic Research Unit at the University of East Anglia, covering the period from 1901 to 2024 (Harris et al., 2020).

Data Munging

The data munging followed the data science workflow outlined by Wickham et al. (2023), as illustrated in Figure 1. All processes were made using the Quarto publishing system (Allaire et al., n.d.), the R programming language (R Core Team, n.d.) and several R packages.

Spatial data processing was performed using the terra R package (Hijmans, n.d.). For data manipulation and workflow, packages from the tidyverse and rOpenSci ecosystems—adhering to the tidy tools manifesto (Wickham, 2023)—were prioritized. All steps were designed to ensure transparency and reproducibility of results.

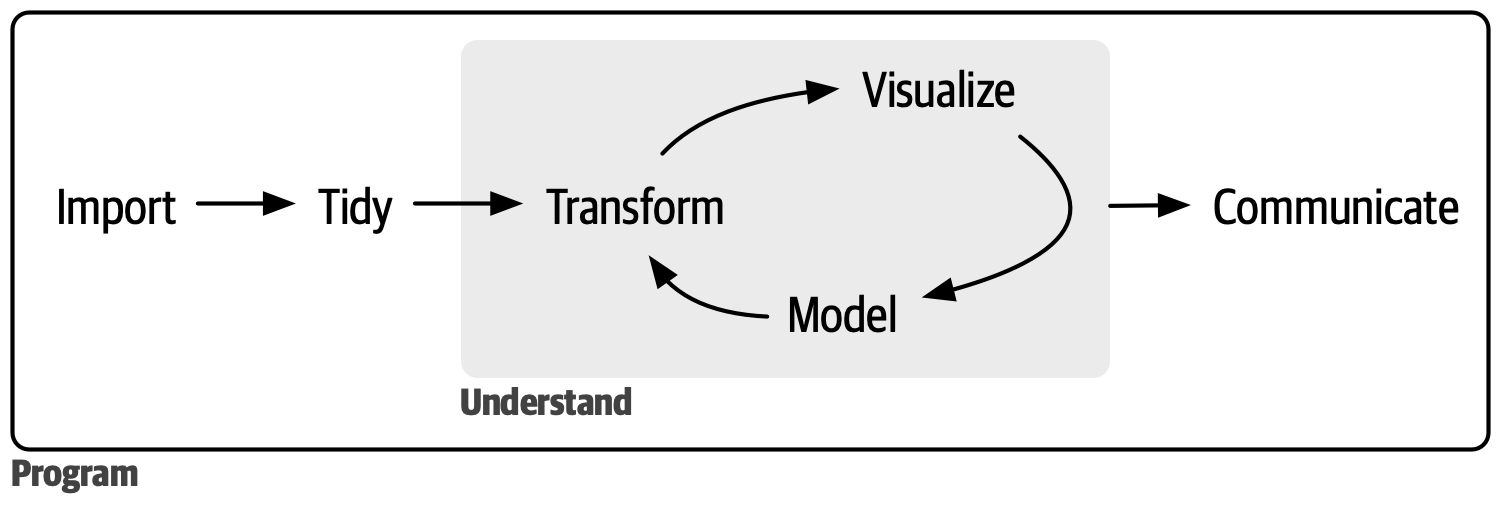

Figure 1: Data science workflow created by Wickham, Çetinkaya-Runde, and Grolemund.

Code Style

The Tidyverse code style guide and design principles were followed to ensure consistency and enhance readability.

Reproducibility

The pipeline is fully reproducible and can be run again at any time. See the README file in the code repository to learn how to run it.

Set the Environment

library(brandr)
library(beepr)
library(cli)
library(dplyr)
library(fs)
library(geodata)
library(ggplot2)
library(ggspatial)
library(groomr) # github.com/danielvartan/groomr
library(here)
library(httr2)
library(magrittr)
library(orbis) # github.com/danielvartan/orbis
library(osfr)
library(purrr)
library(readr)
library(rvest)
library(stringr)
library(terra)
library(tidyr)
library(tidyterra)
library(readr)
library(rutils) # github.com/danielvartan/rutils
library(zip)

source(here("R", "wc_license.R"))
source(here("R", "wc_readme.R"))

Set the Initial Variables

Options

Code

options(cli.progress_show_after = 0)

WorldClim

series <- "historical-monthly-weather-data"

resolution <- "10m"

Directories

Code

raw_data_dir <- here("data-raw")

Code

raw_data_wc_dir <- path(raw_data_dir, "worldclim")

Code

raw_data_wc_series_dir <- path(raw_data_wc_dir, series)

Code

raw_data_wc_series_res_dir <- path(
  raw_data_wc_series_dir,
  resolution |> str_replace_all("\\.", "\\-")
)

Code

data_dir <- here("data")

Code

dirs <- c(
  raw_data_dir, raw_data_wc_dir, raw_data_wc_series_dir,
  raw_data_wc_series_res_dir, data_dir
)

for (i in dirs) {
  if (!dir_exists(i)) {
    dir_create(i, recurse = TRUE)
  }
}

Shape

country <- "bra"

shape <- gadm(
  country = country,
  level = 0,
  path = raw_data_dir
)

Download the Data

Scrape the WordClim Website

Code

html <-
  get_wc_url(series, resolution) |>
  read_html()

Code

urls <-
  html |>
  html_elements("a") |>
  html_attr("href") |>
  str_subset("geodata")

Code

urls <-
  urls %>%
  magrittr::extract(
    str_detect(
      basename(.),
      paste0("(?<=_)", resolution)
    )
  )

Create the Metadata

Code

sizes <-
  urls |>
  map_dbl(
    .f = get_file_size,
    .progress = TRUE
  ) |>
  as_fs_bytes()
#>  ■                                  0% |  ETA: ?
#>  ■■                                 4% |  ETA: 27s
#>  ■■■■■■■■■■■■■                     42% |  ETA:  6s
#>  ■■■■■■■■■■■■■■■■■■■■■■■■■         79% |  ETA:  2s

metadata <-
  tibble(
    url = urls,
    file = basename(urls),
    size = sizes
  ) |>
  arrange(size) |>
  mutate(
  size_cum_sum =
      size |>
      replace_na() |>
      cumsum() |>
      as_fs_bytes()
  )

metadata |> select(-url)

metadata |> pull(size_cum_sum) |> last()
#> 3.35G

Code

metadata |>
  write_rds(
    path(raw_data_wc_series_res_dir, "metadata.rds")
  )

Check for Errors

Code

{
  cli_alert_info(
    paste0(
      "{.strong {cli::col_red(count_na(metadata$size))}} ",
      "url requests resulted in error."
    )
  )

  if (count_na(metadata$size) > 0) {
    cli_alert_info("Their file names are:")
    cli_li(metadata$file[is.na(metadata$size)])
  }
}

Add LICENSE and README Files

Code

dir <- path(raw_data_wc_series_res_dir, "zip")

if (!dir_exists(dir)) dir |> dir_create(recurse = TRUE)

Code

dirs <- c(raw_data_wc_dir, raw_data_wc_series_res_dir)

for (i in dirs) wc_license() |> write_lines(path(i, "LICENSE.md"))

Code

wc_readme() |> write_lines(path(raw_data_wc_dir, "README.md"))

wc_readme(series, resolution) |>
  write_lines(path(raw_data_wc_series_res_dir, "README.md"))

Download the Files

Code

metadata |>
  pull(url) |>
  rutils::download_file(
    dir = dir,
    broken_links = TRUE
  )

beep(8)

Unzip the Files

Code

zip_dir <- path(raw_data_wc_series_res_dir, "zip")

Code

tif_dir <- path(raw_data_wc_series_res_dir, "tif")

if (!dir_exists(tif_dir)) tif_dir |> dir_create(recurse = TRUE)

Code

if (dir_exists(zip_dir)) {
  accompanying_files <- c("README.md", "LICENSE.md")

  for (i in accompanying_files) {
    if (file_exists(path(zip_dir, i))) {
      file_copy(
        path(zip_dir, i),
        path(tif_dir, i),
        overwrite = TRUE
      )
    }
  }
}

Code

if (dir_exists(zip_dir)) {
  zip_files <-
    zip_dir |>
    dir_ls(type = "file", regexp = "zip$")

  cli_progress_bar(
      name = "Unzipping data",
      total = length(zip_files),
      clear = FALSE
    )

  for (i in zip_files) {
    i |>
      zip::unzip(
        overwrite = TRUE,
        exdir = tif_dir
      )

    cli_progress_update()
  }

  cli_progress_done()

  beep(1)
}

Code

if (dir_exists(zip_dir)) zip_dir |> dir_delete()

Read the Data

Gather the `tif` Files

tif_files <-
  tif_dir |>
  dir_ls(type = "file", regexp = "tif$", recurse = TRUE)

Read the Data

data_tmin <-
  tif_files |>
  str_subset("_tmin_") |>
  rast()

data_tmax <-
  tif_files |>
  str_subset("_tmax_") |>
  rast()

data_prec <-
  tif_files |>
  str_subset("_prec_") |>
  rast()

Tidy the Data

for (i in c("data_tmin", "data_tmax", "data_prec")) {
  year_month <- get(i) |> names() |> str_extract("\\d{4}-\\d{2}")
  var_name <- i |> str_extract("[a-z]+$")

  i |> assign(magrittr::set_names(get(i), year_month))
  i |> assign(`varnames<-`(get(i), rep(var_name, nlyr(get(i)))))

  i |>
    assign(
      crop(
        get(i),
        shape,
        snap = "near",
        mask = TRUE,
        touches = TRUE,
        extend = TRUE
      )
    )
}

Save the Data

for (i in c("data_tmin", "data_tmax", "data_prec")) {
  var_name <- i |> str_extract("[a-z]+$")

  get(i) |>
    terra::writeRaster(
      path(
        data_dir,
        paste0(resolution, "_", var_name, "_", country, ".tif")
      ),
      overwrite = TRUE
    )
}

Visualize the Data

plot_data <- data_prec |> select(all_of("2024-07"))

ggplot() +
  geom_spatraster(data = plot_data) +
  scale_fill_brand_c(color_type = "div") +
  annotation_scale(
    location = "br",
    style = "tick",
    width_hint = 0.25,
    height = unit(0.15, "cm")
  ) +
  annotation_north_arrow(
    location = "br",
    height = unit(1, "cm"),
    width = unit(1, "cm"),
    pad_x = unit(0.1, "cm"),
    pad_y = unit(0.55, "cm"),
    style = north_arrow_fancy_orienteering
  ) +
  labs(
    title = "Precipitation in Brazil (mm)",
    subtitle= "July 2024",
    fill = NULL,
    caption = "Source: WorldClim 2.1"
  )
#> Scale on map varies by more than 10%, scale bar may be inaccurate

How to Cite

When using this data, you must also cite the original data sources.

To cite this work, please use the following format:

Vartanian, D., & Carvalho, A. M. (2025). A reproducible pipeline for processing WorldClim 2.1 Historical Monthly Weather Data in Brazil [Computer software]. Sustentarea Research and Extension Group of the University of São Paulo. https://sustentarea.github.io/brazil-historical-climate

A BibTeX entry for LaTeX users is

@misc{vartanian2025,
  title = {A reproducible pipeline for processing WorldClim 2.1 Historical Monthly Weather Data in Brazil},
  author = {{Daniel Vartanian} and {Aline Martins de Carvalho}},
  year = {2025},
  address = {São Paulo},
  institution = {Sustentarea Research and Extension Group of the University of São Paulo},
  langid = {en},
  url = {https://sustentarea.github.io/brazil-historical-climate}
}

License

The original data sources may have their own license terms and conditions.

The code in this report is licensed under the GNU General Public License Version 3, while the report is available under the Creative Commons CC0 License.

Copyright (C) 2025 Daniel Vartanian

The code in this report is free software: you can redistribute it and/or
modify it under the terms of the GNU General Public License as published by the
Free Software Foundation, either version 3 of the License, or (at your option)
any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with
this program. If not, see <https://www.gnu.org/licenses/>.

Acknowledgments

This work is part of the Sustentarea Research and Extension Group project: Global syndemic: The impact of anthropogenic climate change on the health and nutrition of children under five years old attended by Brazil’s public health system (SUS).

This work was supported by the Department of Science and Technology of the Secretariat of Science, Technology, and Innovation and of the Health Economic-Industrial Complex (SECTICS) of the Ministry of Health of Brazil, and the National Council for Scientific and Technological Development (CNPq) (grant no. 444588/2023-0).

References

Allaire, J. J., Teague, C., Xie, Y., & Dervieux, C. (n.d.). Quarto [Computer software]. Zenodo. https://doi.org/10.5281/ZENODO.5960048

Fick, S. E., & Hijmans, R. J. (2017). WorldClim 2: New 1-km spatial resolution climate surfaces for global land areas. International Journal of Climatology, 37(12), 4302–4315. https://doi.org/10.1002/joc.5086

Harris, I., Osborn, T. J., Jones, P., & Lister, D. (2020). Version 4 of the CRU TS monthly high-resolution gridded multivariate climate dataset. Scientific Data, 7(1), 109. https://doi.org/10.1038/s41597-020-0453-3

Hijmans, R. J. (n.d.). terra: Spatial Data Analysis [Computer software]. https://rspatial.org

R Core Team. (n.d.). R: A language and environment for statistical computing [Computer software]. R Foundation for Statistical Computing. https://www.R-project.org

Wickham, H. (2023). The tidy tools manifesto. Tidyverse. https://tidyverse.tidyverse.org/articles/manifesto.html

Wickham, H., Çetinkaya-Rundel, M., & Grolemund, G. (2023). R for data science: Import, tidy, transform, visualize, and model data (2nd ed.). O’Reilly Media. https://r4ds.hadley.nz
